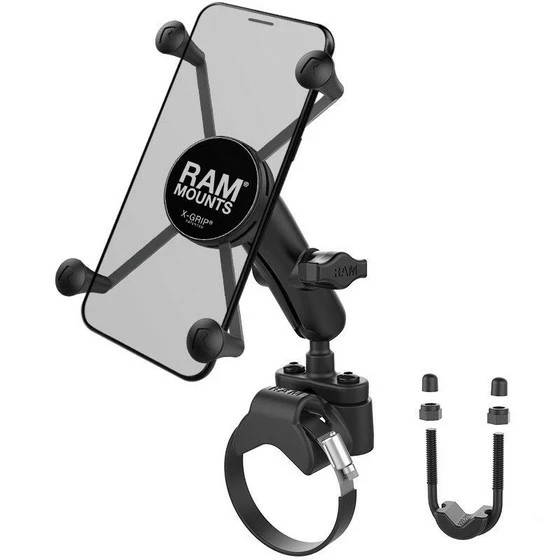

RAM Mounts X-Grip Large Phone Mount With ATV/UTV Rail Base

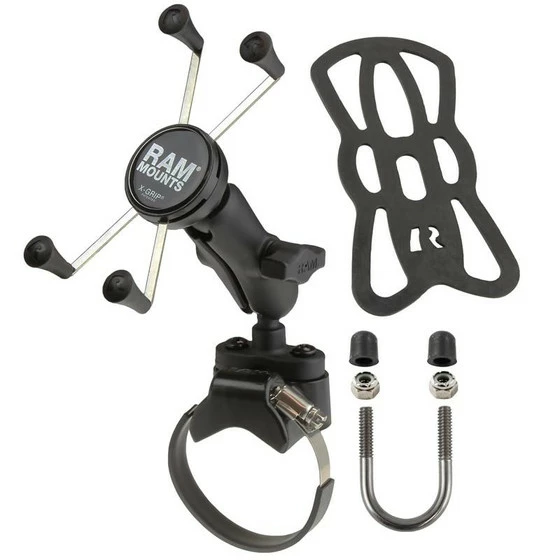

The RAM-B-231-2-UN10 consists of a steel strap base, stainless steel u-bolt base, double socket arm and universal spring loaded X-Grip® cradle for large phones and phablets. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today’s vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features

• Phone mount for ATV/UTVs includes large size phone holder, rail and bar base with strap clamp and U-bolt components
• RAM® strap mount will accommodate most common roll bar sizes on UTV and handlebar sizes on ATVs
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

SPECIFICATIONS

Holder Dimensions:

• Width Range: 1.75″ – 4.5″
• Depth Range: .875″ max

Clamp Range:

• U-Bolt: .5″ – 1″ diameter
• Strap Clamp: 1.57″ – 3.15″ diameter

Weight Capacity:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb
