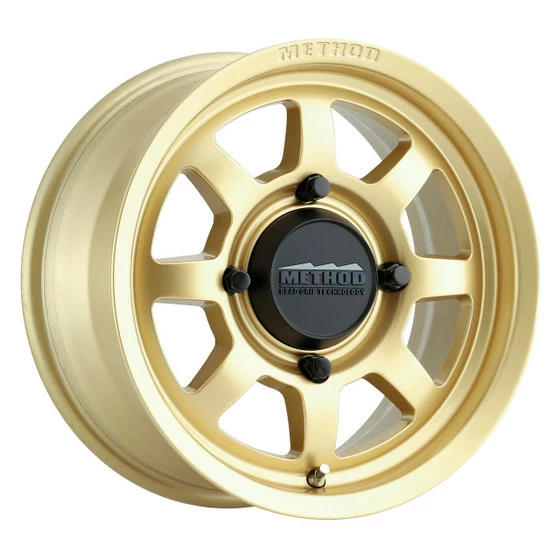

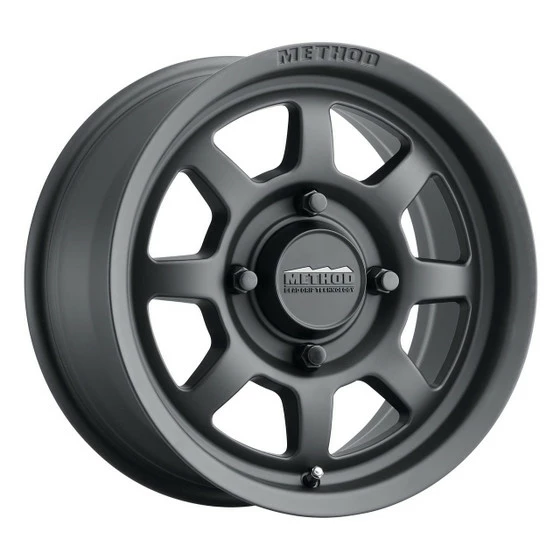

Method Race Wheels MR410 UTV Bead Grip Wheel

Method Race Wheels UTV Wheels come in a range of sizes and offsets and are optimized for multiple terrain and driving environments. Forest roads, rock crawling, sand dunes; you name it and Method’s UTV Wheels are an excellent choice.

Method’s UTV Wheels use a forged 6061 aluminum beadlock ring and integrate American made Grade 8 zinc-plated hardware kits that are included with all beadlocks. On top of that these UTV wheels are constructed from Cast 356 aluminum and are T6 heat treated with industry leading load ratings of up to 1600 lbs.

Features

• Wheel Diameter: 14 Inches
• Wheel Width: 7 Inches
• Bolt Pattern: 4×136
• Bolt Hole: 4
• Bolt Diameter: 136
• Offset: 13mm
• Backside Spacing: 4.5 Inches
• ATV Offset B+F: 4+3
• Hub Bore: 106.25mm
• Wheel Weight: 13.9 lbs
• Max Load: 1600 lbs
• Color / Finish : Matte Black

Specs

• Lug Hole Diameter: 14.1mm
• Mount Pad Diameter: 180mm
• Spoke Depth At 90mm: 3
• Spoke Depth At 100mm: 11
• Spoke Depth At 160mm: 12
• Inner Wheel Radius: 165
• Cap Bore: 96mm
• Cap Clearance Height: 37.8mm
• Lip Size: 44mm
