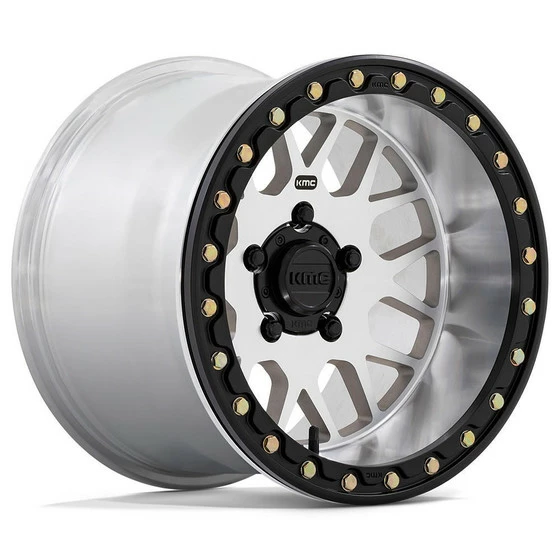

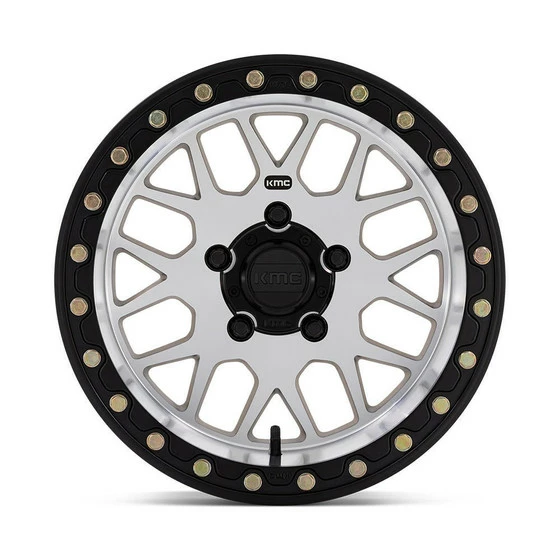

KMC Wheels Polaris RZR Pro R / Turbo R Grenade Beadlock 5-Lug UTV Wheel

The KMC KS235 Grenade Beadlock wheel is a powerhouse contender. Featuring a split eight-spoke design offering superb ventilation and debris pass-through, the KS235 has bark and bite. Run rampant with piece of mind with the KS235’s true beadlock construction and billet beadlock ring – guaranteed to keep your off-road rubber mounted while airing down and overcoming any terrain.

Wheel Specs

14″

Part#	Model	Finish	Size	Bolt Pattern	Backspace	Offset	Bore	Weight	Load	Lip Size	Cap

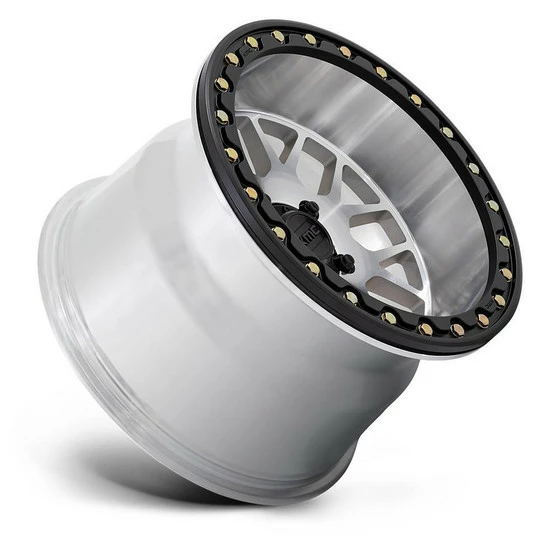

KS23547040538	KS235 GRENADE BEADLOCK	MACHINED	14X7	4X110	5.5	38mm	86	15.70 lbs	1000	0.38	KS2CAP141540-SB
KS23547040510	KS235 GRENADE BEADLOCK	MACHINED	14X7	4X110	4.39	10mm	86	14.60 lbs	1000	1.69	KS2CAP141540-SB
KS23547048538	KS235 GRENADE BEADLOCK	MACHINED	14X7	4X137	5.5	38mm	112.1	15.70 lbs	1000	0.38	KS2CAP141548-SB
KS23547048510	KS235 GRENADE BEADLOCK	MACHINED	14X7	4X137	4.39	10mm	112.1	14.60 lbs	1000	1.69	KS2CAP141548-SB
KS23547044538	KS235 GRENADE BEADLOCK	MACHINED	14X7	4X156	5.5	38mm	132	14.40 lbs	1000	0.38	KS2CAP44-SB
KS23547044510	KS235 GRENADE BEADLOCK	MACHINED	14X7	4X156	4.39	10mm	132	13.70 lbs	1000	1.69	KS2CAP44-SB
KS23541040500	KS235 GRENADE BEADLOCK	MACHINED	14X10	4X110	5.5	00mm	86	15.80 lbs	1000	3.43	KS2CAP141540-SB
KS23541048500	KS235 GRENADE BEADLOCK	MACHINED	14X10	4X137	5.5	00mm	112.1	15.80 lbs	1000	3.43	KS2CAP141548-SB
KS23541044500	KS235 GRENADE BEADLOCK	MACHINED	14X10	4X156	5.5	00mm	132	15.80 lbs	1000	3.43	KS2CAP44-SB

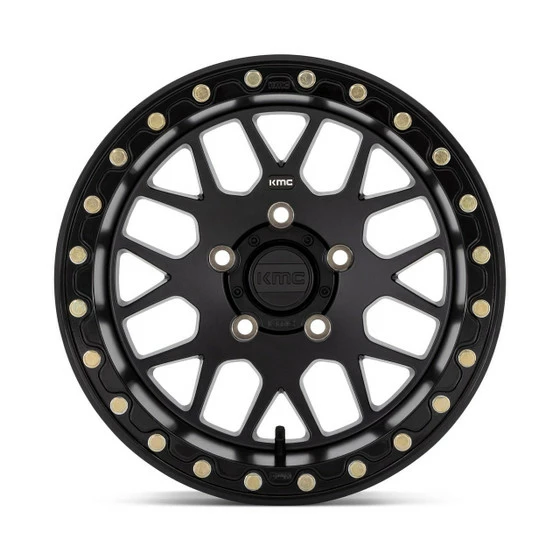

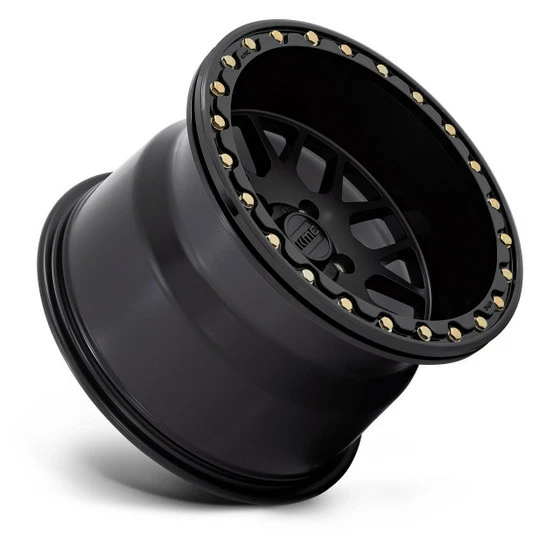

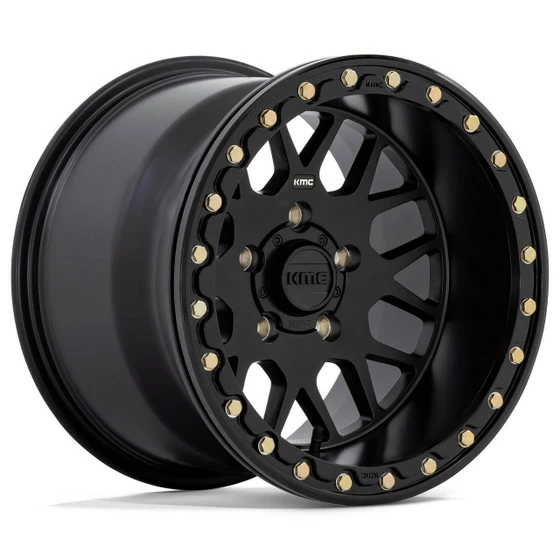

KS23547040710	KS235 GRENADE BEADLOCK	SATIN BLACK	14X7	4X110	4.39	10mm	86	17.21 lbs	1000	1.69	KS2CAP141540-SB
KS23547040738	KS235 GRENADE BEADLOCK	SATIN BLACK	14X7	4X110	5.5	38mm	86	17.73 lbs	1000	0.35	KS2CAP141540-SB
KS23547048738	KS235 GRENADE BEADLOCK	SATIN BLACK	14X7	4X137	5.5	38mm	112.1	17.49 lbs	1000	0.35	KS2CAP141548-SB
KS23547048710	KS235 GRENADE BEADLOCK	SATIN BLACK	14X7	4X137	4.39	10mm	112.1	17.03 lbs	1000	1.69	KS2CAP141548-SB
KS23547044738	KS235 GRENADE BEADLOCK	SATIN BLACK	14X7	4X156	5.5	38mm	132	16.55 lbs	1000	0.35	KS2CAP44-SB
KS23547044710	KS235 GRENADE BEADLOCK	SATIN BLACK	14X7	4X156	4.39	10mm	132	16.11 lbs	1000	1.69	KS2CAP44-SB
KS23541048700	KS235 GRENADE BEADLOCK	SATIN BLACK	14X10	4X137	5.5	00mm	112.1	18.33 lbs	1000	3.41	KS2CAP141548-SB
KS23541044700	KS235 GRENADE BEADLOCK	SATIN BLACK	14X10	4X156	5.5	00mm	132	17.64 lbs	1000	3.41	KS2CAP44-SB



15″

Part#	Model	Finish	Size	Bolt Pattern	Backspace	Offset	Bore	Weight	Load	Lip Size	Cap
KS23556040538	KS235 GRENADE BEADLOCK	MACHINED	15X6	4X110	5	38mm	86	15.70 lbs	1000	0.24	KS2CAP1540-SB38
KS23556048538	KS235 GRENADE BEADLOCK	MACHINED	15X6	4X137	5	38mm	112.1	15.70 lbs	1000	0.24	KS2CAP1548-SB38
KS23556044538	KS235 GRENADE BEADLOCK	MACHINED	15X6	4X156	5	38mm	132	14.80 lbs	1000	0.24	KS2CAP44-SB
KS23556012538	KS235 GRENADE BEADLOCK	MACHINED	15X6	5X114.3	5	38mm	72.56	15.84 lbs	1000	0.24	KS2CAP1512-SB38
KS23557040510	KS235 GRENADE BEADLOCK	MACHINED	15X7	4X110	4.39	10mm	86	16.80 lbs	1000	1.69	KS2CAP141540-SB
KS23557048510	KS235 GRENADE BEADLOCK	MACHINED	15X7	4X137	4.39	10mm	112.1	16.80 lbs	1000	1.69	KS2CAP141548-SB
KS23557044510	KS235 GRENADE BEADLOCK	MACHINED	15X7	4X156	4.39	10mm	115.1	16.80 lbs	1000	1.69	KS2CAP44-SB
KS23551040500	KS235 GRENADE BEADLOCK	MACHINED	15X10	4X110	5.5	00mm	86	18.50 lbs	1000	3.35	KS2CAP141540-SB
KS23551048500	KS235 GRENADE BEADLOCK	MACHINED	15X10	4X137	5.5	00mm	112.1	18.50 lbs	1000	3.35	KS2CAP141548-SB
KS23551044500	KS235 GRENADE BEADLOCK	MACHINED	15X10	4X156	5.5	00mm	132	17.20 lbs	1000	3.35	KS2CAP44-SB
KS23551012500	KS235 GRENADE BEADLOCK	MACHINED	15X10	5X114.3	5.5	00mm	72.56	18.26 lbs	1000	3.35	KS2CAP1512-SB
KS23556048738	KS235 GRENADE BEADLOCK	SATIN BLACK	15X6	4X137	5	38mm	112.1	17.21 lbs	1000	0.24	KS2CAP1548-SB38
KS23556044738	KS235 GRENADE BEADLOCK	SATIN BLACK	15X6	4X156	5	38mm	132	16.55 lbs	1000	0.24	KS2CAP44-SB
KS23556012738	KS235 GRENADE BEADLOCK	SATIN BLACK	15X6	5X114.3	5	38mm	72.56	15.84 lbs	1000	0.24	KS2CAP1512-SB38
KS23557040710	KS235 GRENADE BEADLOCK	SATIN BLACK	15X7	4X110	4.39	10mm	86	16.80 lbs	1000	1.69	KS2CAP141540-SB
KS23557048710	KS235 GRENADE BEADLOCK	SATIN BLACK	15X7	4X137	4.39	10mm	112.1	16.80 lbs	1000	1.69	KS2CAP141548-SB
KS23557044710	KS235 GRENADE BEADLOCK	SATIN BLACK	15X7	4X156	4.39	10mm	115.1	16.80 lbs	1000	1.69	KS2CAP44-SB
KS23551048700	KS235 GRENADE BEADLOCK	SATIN BLACK	15X10	4X137	5.5	00mm	112.1	20.30 lbs	1000	3.34	KS2CAP141548-SB
KS23551044700	KS235 GRENADE BEADLOCK	SATIN BLACK	15X10	4X156	5.5	00mm	132	19.68 lbs	1000	3.34	KS2CAP44-SB
KS23551012700	KS235 GRENADE BEADLOCK	SATIN BLACK	15X10	5X114.3	5.5	00mm	72.56	18.26 lbs	1000	3.34	KS2CAP1512-SB

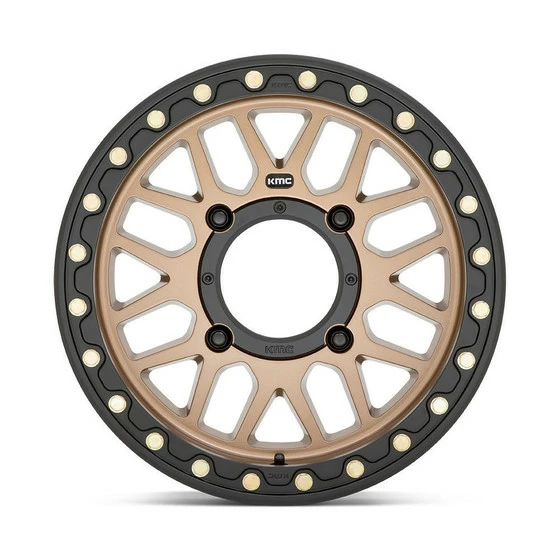

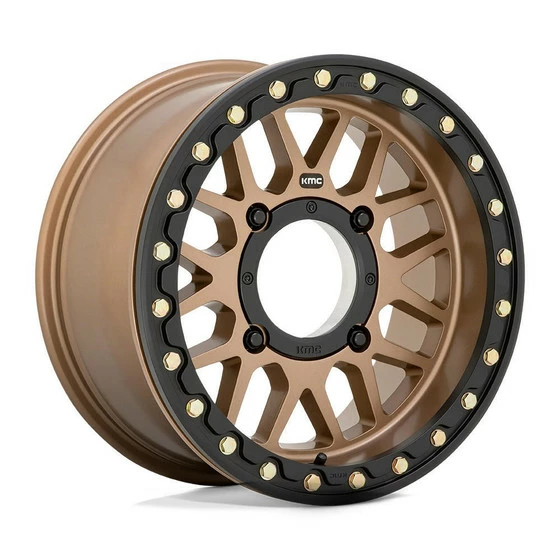

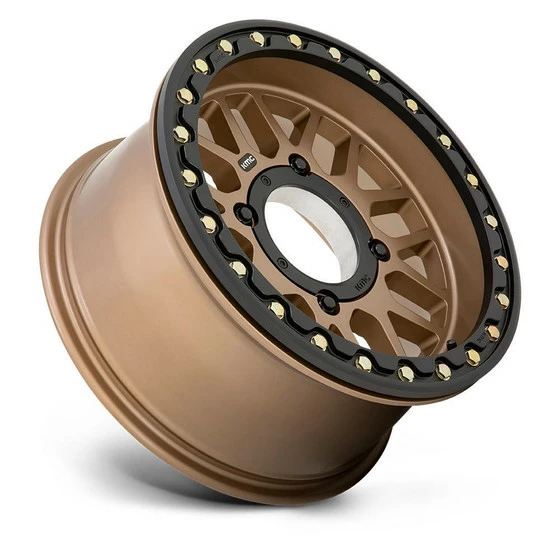

KS23556048638	KS235 GRENADE BEADLOCK	SATIN BRONZE	15X6	4X137	5	38mm	112.1	17.21 lbs	1000	0.24	KS2CAP1548-SB38
KS23556044638	KS235 GRENADE BEADLOCK	SATIN BRONZE	15X6	4X156	5	38mm	132	16.55 lbs	1000	0.24	KS2CAP44-SB
KS23557040610	KS235 GRENADE BEADLOCK	SATIN BRONZE	15X7	4X110	4.39	10mm	86	16.80 lbs	1000	1.69	KS2CAP141540-SB
KS23557048610	KS235 GRENADE BEADLOCK	SATIN BRONZE	15X7	4X137	4.39	10mm	112.1	16.80 lbs	1000	1.69	KS2CAP141548-SB
KS23557044610	KS235 GRENADE BEADLOCK	SATIN BRONZE	15X7	4X156	4.39	10mm	115.1	16.80 lbs	1000	1.69	KS2CAP44-SB

Note

• Sold per piece
