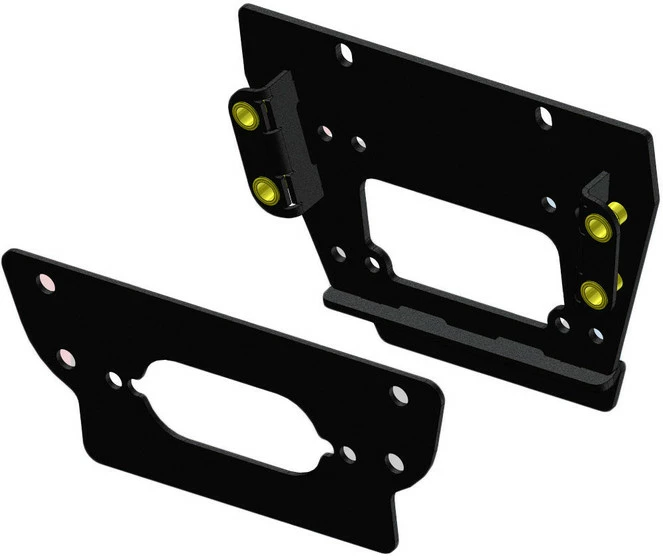

KFI Kawasaki Teryx KRX Winch Mount

KFI Kawasaki Teryx KRX Winch Mount (101805)

BELOW WINCHES WILL MOUNT WITH NO NEEDED ADDITIONAL PARTS:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI:  AS-50 / AS-50w
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
• WARN:A2000 / A2500 / U2500
• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN:RT40 / XT40
• WARN: Vantage 2000-4000lb
• WARN: ProVantage 2500-4500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
• MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 / PE5000
• CYCLE COUNTRY : Powermax 2500 / 3500 / 4500
• BADLAND: Standard Winches
• BADLAND: WIDE Winches
• CHAMPION : Standard Winches
• CHAMPION : WIDE Winches
• KEEPER CORP. TRAKKER :KT3000 / KT2500C / KT3000C / KT4000
• SMITTYBILT :XRC 2.0Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
• Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT :XRC 3.0 / XRC 4.0
• XGEAR:  X3000 / X4000
• 4-Hole Standard (3.00″ x 4.875″ bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 (Hardcore Series)All with 3.00″ x 4.875″ bolt pattern mount-up
• All with 3.00″ x 6.600″ bolt pattern mount-up
• Traveller: 1078311
• Traveller:1078088 / 1078302
• Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.4-Hole (3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern)
• 4-Hole WIDE (3.00″ x 6.60″ bolt pattern with rollers that are 6.600″ or 6.000″ bolt pattern)
• 2-Hole (3.10″ with rollers that are 4.875″ bolt pattern)
• QUADBOSS: RP25 / RP35

BELOW WINCHES WILL MOUNT WITH THE REQUIRED ADDITIONAL PURCHASE OF KFI SPACER KIT #101210:

• KEEPER CORP. TRAKKER: KT4000C
• VENOM: 4500 / 5000 (Hardcore Series)All with 3.00″ x 4.875″ bolt pattern mount-up
• All with 3.00″ x 6.600″ bolt pattern mount-up
• KOLPIN: 2500 / 3500 / 4500

SPECIFICATIONS

• 100% MADE IN USA.
• Plate Constructed of 3/16″ steel.
• Fairlead bracket constructed of 1/4″ steel.
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Very easy to install.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.

FITMENT

• 20-21 Teryx KRX 1000
